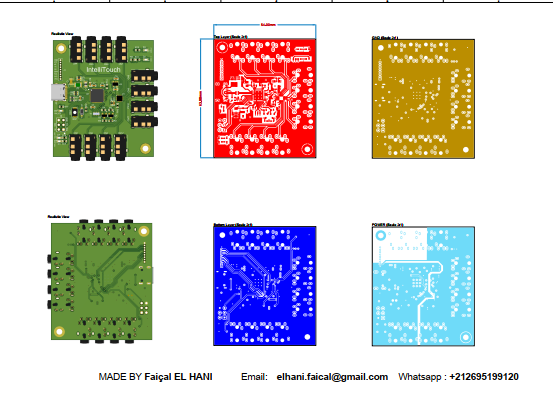

Capacitive Touch Interface Board with ATmega32U4

This project is a high-performance capacitive touch interface board designed for interactive control systems, wearable devices, and consumer electronics. The design focuses on delivering reliable touch sensing, efficient power regulation, and seamless USB connectivity in a compact form factor.

At its core, the system is powered by the ATmega32U4-MU microcontroller, a versatile 8-bit MCU with native USB support, enabling direct communication with PCs and embedded hosts without additional USB-to-UART bridges.

The capacitive sensing functionality is achieved using the MPR121QR2, a dedicated 12-channel capacitive touch controller. This IC allows the board to support twelve independent touch zones, making it ideal for applications such as touch keyboards, sliders, control panels, or gesture-based input devices.

For stable and efficient power delivery, the design integrates the AP2112K-3.3TRG1 LDO regulator, ensuring consistent 3.3V operation even in portable or battery-powered systems.

The touch sensing is realized through twelve ST-0337D00-071-1A2H electrodes, carefully arranged to provide responsive and accurate touch detection. These electrodes are optimized for low-noise performance and can be embedded in various materials such as glass, plastic, or flexible substrates.

Key features include:

• ATmega32U4-MU: USB-enabled microcontroller for direct communication.
• MPR121QR2: 12-channel capacitive touch controller.
• AP2112K-3.3TRG1: Low-dropout regulator for efficient power management.
• 12 capacitive touch electrodes (ST-0337D00-071-1A2H) for multi-point touch interaction.

This board can be deployed in prototyping environments, consumer device interfaces, home automation touch panels, and custom HMI (Human-Machine Interface) solutions.
